Contextual fit

The smith house was a rocky piece of land with dense evergreens and coastal outcrops.  For this project we had to design an addition to the existing house using Richard Meier's systems into our design.


Narrative

The Smith family hired me because they want to change the house because they want more space, so they decided to do a family room. They also want to add a master suite with a walk-in closet and a master bedroom. They also want an exercise room and a deck because all the kids are going to college and they are all doing sports, so they need to practice inside and outside of the house.
Hierarchically, the family room will be the most important because it's where they can spend time with family; they like to play and watch movies. The second will be the master suite, because that's where Mrs. and MS Smith rest.


CONTEXTUAL ANALYSIS

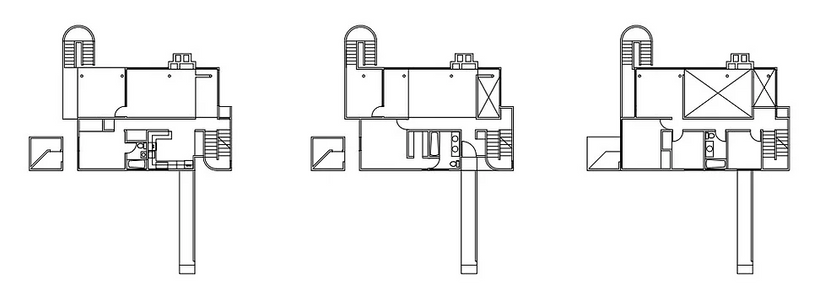

ORIGINAL FLOOR PLANS

Lower Level                          First Floor                        Second Floor

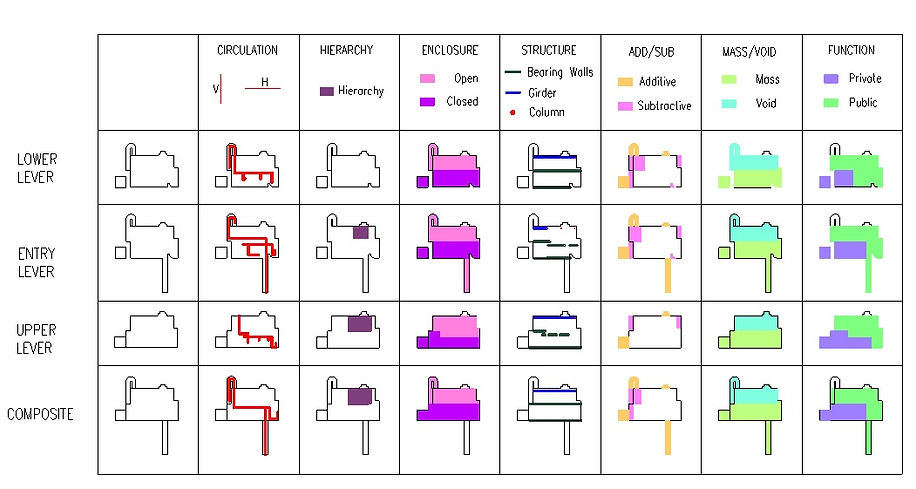

ANALYSIS

NUEVA TABLA.jpg

Floor Plans

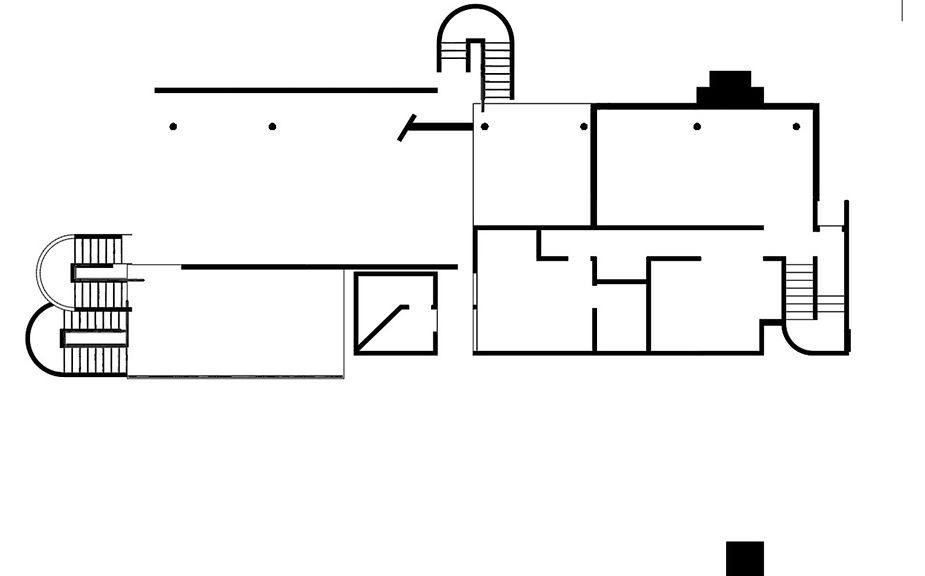

Lower Level

Floor plan lower level_edited.jpg

First Floor

NUEVo 1st floor plan.jpg

Second Floor

NUEVo 2nd floor plan.jpg

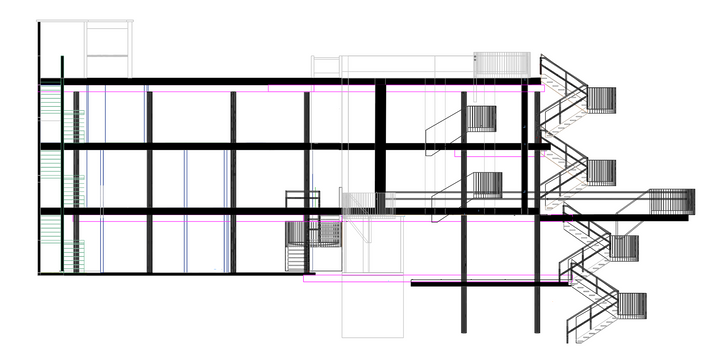

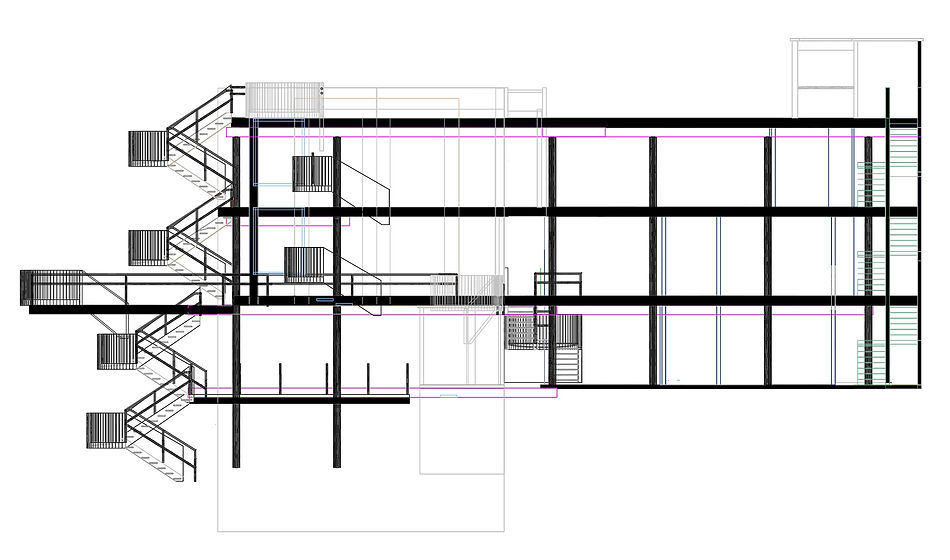

2D Sections

NuEVa ELEVATION.jpg

Preliminary  Design

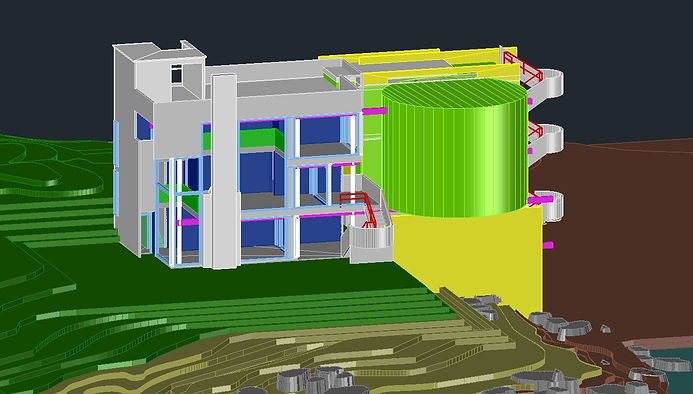

Preliminary design.jpg
Preliminary design 2.jpg
Preliminary design 3.jpg

Final  Design

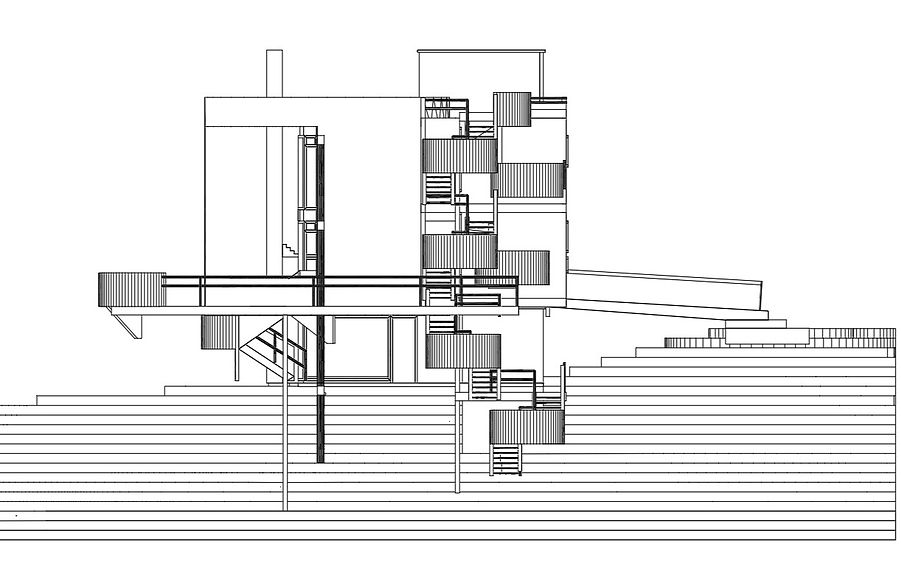

Elevations

FRONT

Elevation 3_edited.jpg

REAR

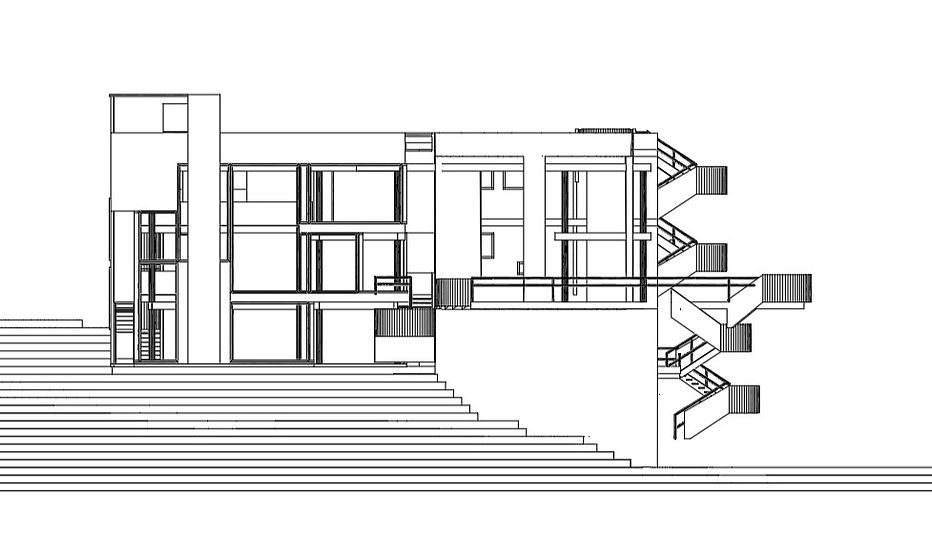

Elevation 1_edited.jpg
Elevation 2_edited.jpg

LEFT SIDE

RIGHT SIDE

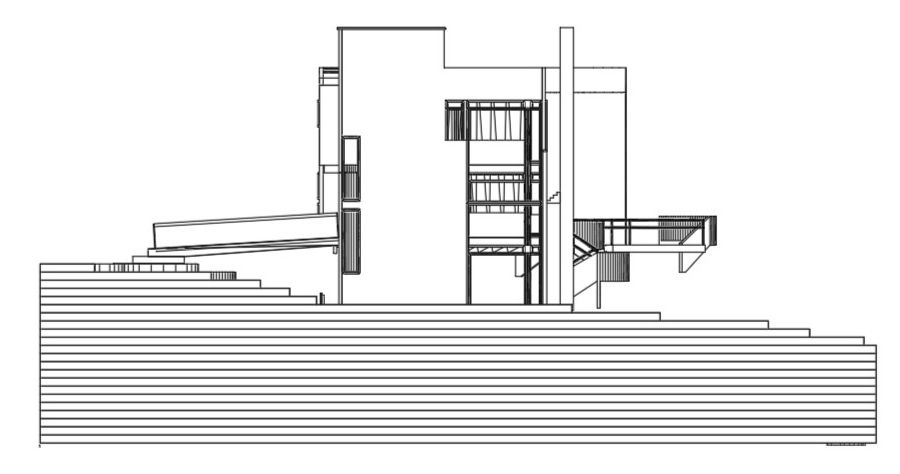

Elevation 4_edited.jpg

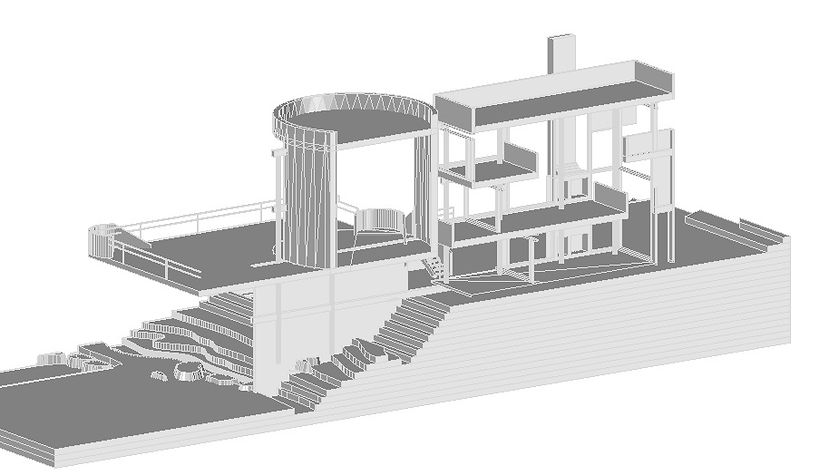

3D Rendering section

Nuevo 3D Rendering section 2.jpg

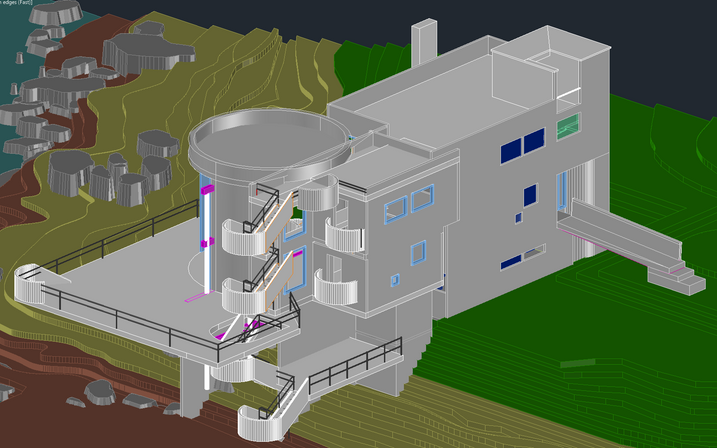

Nuevo 3D Rendering section.jpg

Plot Plan
